万彩网100线路Sealing Threaded Plugs
万彩网100线路Yellow Nylon
万彩网100线路Used in oil and gas, plumbing, and automotive sectors to protect threads.

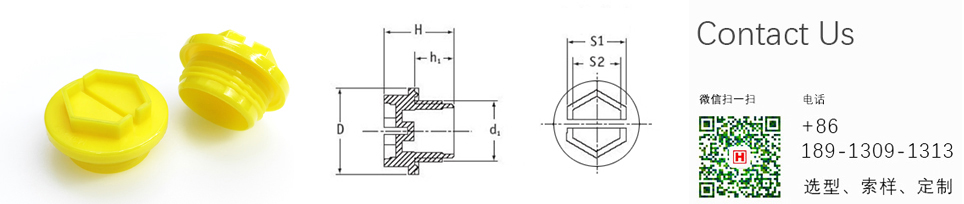

Product drawing
Product specifications are complete, more specification details can contact us: 18913091313
| Thread type | Compatible Thread Size(d1) | D(mm) | H(mm) | h1(mm) | S1(mm) | S2(mm) |
| Metric Threads | M8x1 | 12.5 | 15.5 | 8 | 7 | 4 |
| Metric Threads | M10x1 | 14.5 | 16.5 | 9 | 9 | 6 |
| Metric Threads | M10x1.5 | 14.5 | 16.5 | 9 | 9 | 6 |
| Metric Threads | M12x1 | 17 | 16.5 | 9 | 10 | 7 |
| Metric Threads | M12x1.5 | 17 | 16.5 | 9 | 10 | 7 |
| Metric Threads | M14x1.5 | 19 | 17.5 | 10 | 13 | 10 |
| Metric Threads | M16x1.5 | 22.3 | 17.5 | 9.3 | 15 | 12 |
| Metric Threads | M18x1.5 | 24 | 17.5 | 10 | 17 | 14 |
| Metric Threads | M22x1.5 | 28 | 17.5 | 10 | 21 | 18 |
| Metric Threads | M24x1.5 | 30 | 17.5 | 10 | 24 | 21 |
| Metric Threads | M26x1.5 | 32 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M27x1.5 | 33 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M27x2 | 33 | 22 | 13.5 | 24 | 21 |
| Metric Threads | M28x1.5 | 34 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M30x1.5 | 38 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M30x2 | 38 | 22 | 13.5 | 24 | 21 |
| Metric Threads | M32x1.5 | 40 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M33x2 | 40 | 22 | 13.5 | 24 | 21 |
| Metric Threads | M36x1.5 | 45 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M36x2 | 45 | 22 | 13.5 | 24 | 21 |
| Metric Threads | M38x1.5 | 48 | 20.5 | 12 | 24 | 21 |
| Metric Threads | M42x2 | 50 | 22 | 13.5 | 30 | 27 |
| Metric Threads | M45x1.5 | 52 | 21.5 | 12 | 30 | 27 |
| Metric Threads | M45x2 | 52 | 22 | 13.5 | 30 | 27 |
| Metric Threads | M48x2 | 55 | 23 | 13.5 | 30 | 27 |
| Metric Threads | M52x2 | 60 | 23 | 13.5 | 30 | 27 |
| BSP Threads | 1⁄8″x28 | 16 | 15.5 | 8 | 12 | 9 |
| BSP Threads | 1⁄4″x19 | 19 | 17.5 | 10 | 13 | 10 |
| BSP Threads | 3⁄8″x19 | 22 | 17.5 | 10 | 15 | 12 |
| BSP Threads | 1⁄2″x14 | 27 | 19.5 | 12 | 19 | 16 |
| BSP Threads | 3⁄4″x14 | 32 | 19.5 | 12 | 24 | 21 |
| BSP Threads | 1″x11 | 40 | 22.5 | 15 | 30 | 27 |
| BSP Threads | 13⁄4″x11 | 62 | 24 | 15 | 50 | 46 |
| BSP Threads | 2″x11 | 68 | 24 | 15 | 55 | 51 |
| UNF Threads | 3⁄8″x24 | 16 | 17.5 | 10 | 9 | 6 |
| UNF Threads | 7⁄16″x20 | 17 | 17.5 | 10 | 10 | 7 |
| UNF Threads | 1⁄2″x20 | 19 | 17.5 | 10 | 13 | 10 |
| UNF Threads | 9⁄16″x18 | 20.5 | 17.5 | 10 | 13 | 10 |
| UNF Threads | 5⁄8″x18 | 22 | 17.5 | 10 | 15 | 12 |
| UNF Threads | 3⁄4″x16 | 26 | 17.5 | 10 | 19 | 16 |
| UNF Threads | 7⁄8″x14 | 28.5 | 19.5 | 12 | 21 | 18 |
| UNF Threads | 1”x14 | 31.5 | 19.5 | 12 | 24 | 21 |
| UNF Threads | 11⁄16″x12 | 33 | 19.5 | 12 | 24 | 21 |
| UNF Threads | 15⁄16″x12 | 40 | 22.5 | 15 | 30 | 27 |
| UNF Threads | 15⁄8″x12 | 47.5 | 22.5 | 15 | 36 | 33 |
| UNF Threads | 17⁄8″x12 | 54 | 22.5 | 15 | 36 | 33 |

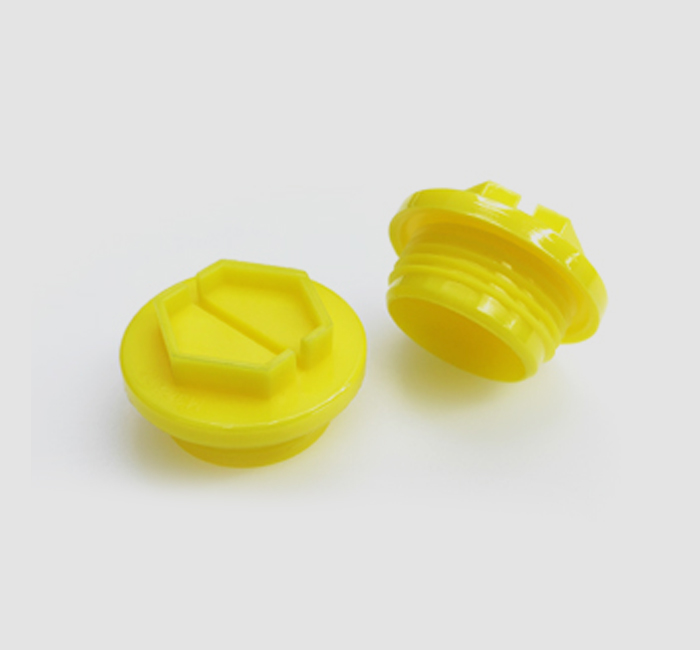

Product images
